【Monaco】Monaco-Editor在Vue中使用(实现代码编辑与diff代码比较)

Monaco在线代码编辑器使用总结

1.什么是Monaco

Monaco编辑器是为VS代码提供支持的代码编辑器
1

官方API文档

2.Monaco Editor安装及使用

2.1安装

npm install monaco-editor --save-dev

npm install monaco-editor-webpack-plugin --save-dev
1
2
3

2.2配置vue.config.js

const MonacoWebpackPlugin = require(''monaco-editor-webpack-plugin'')
module.exports = {
    configureWebpack: {
        plugins: [
            new MonacoWebpackPlugin()
        ]
    }
}

1
2
3
4
5
6
7
8
9

2.3 开始使用

2.3.1.vue文件中导入monaco

import * as monaco from ''monaco-editor''
1

2.3.2.创建代码编辑区域

 <div ref="container" class="monaco-editor"></div>
1

2.3.3.初始化container

2.3.3.1 准备monaco基础配置

  data () {
    return {
      // 主要配置
      defaultOpts: {
       // 编辑器的值
        value: '''',
         // 编辑器主题：vs, hc-black, or vs-dark，更多选择详见官网
        theme: ''vs-dark'',
        // 右侧不显示编辑器预览框
        roundedSelection: true,
        // 自动缩进
        autoIndent: true ,
        // 是否只读
        readOnly: false,
        // 语言类型java,c,php更多选择详见官网
        language: ''javascript'',
      }
        // 编辑器对象
      monacoEditor: {}
    }
  },
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

2.3.3.2 初始化monaco编辑器

methods: {
    init () {
      // 初始化container的内容，销毁之前生成的编辑器
      this.$refs.container.innerHTML = ''''
      // 生成编辑器配置
      let editorOptions = Object.assign(this.defaultOpts, this.opts)
      // 生成编辑器对象
      this.monacoEditor = monaco.editor.create(this.$refs.container, editorOptions)
      // 编辑器内容发生改变时触发
      this.monacoEditor.onDidChangeModelContent(() => {
        this.$emit(''change'', this.monacoEditor.getValue())
      })
    },
   // 手动编辑器中的内容
   getValue() {
        this.$message.info(this.$refs.monaco.getVal())
    },
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

整体源码:

1. monacoeditor.vue

<template>
  <div
    ref="container"
    class="monaco-editor"
    :style="`height: ${height}px`"
  ></div>
</template>
<script>
import * as monaco from ''monaco-editor''
export default {
  name: ''AcMonaco'',
  props: {
    opts: {
      type: Object,
      default () {
        return {}
      }
    },
    height: {
      type: Number,
      default: 300
    }
  },
  data () {
    return {
      // 主要配置
      defaultOpts: {
        value: '''', // 编辑器的值
        theme: ''vs-dark'', // 编辑器主题：vs, hc-black, or vs-dark，更多选择详见官网
        roundedSelection: true, // 右侧不显示编辑器预览框
        autoIndent: true // 自动缩进
      },
      // 编辑器对象
      monacoEditor: {}
    }
  },
  watch: {
    opts: {
      handler () {
        this.init()
      },
      deep: true
    }
  },
  mounted () {
    this.init()
  },
  methods: {
    init () {
      // 初始化container的内容，销毁之前生成的编辑器
      this.$refs.container.innerHTML = ''''
      // 生成编辑器配置
      let editorOptions = Object.assign(this.defaultOpts, this.opts)
      // 生成编辑器对象
      this.monacoEditor = monaco.editor.create(this.$refs.container, editorOptions)
      // 编辑器内容发生改变时触发
      this.monacoEditor.onDidChangeModelContent(() => {
        this.$emit(''change'', this.monacoEditor.getValue())
      })
    },
    // 供父组件调用手动获取值
    getVal () {
      return this.monacoEditor.getValue()
    }
  }
}
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

2. App.vue

<template>
  <div>
    <div id="app">
      <img
        alt="Vue logo"
        style="width: 200px; height: 200px"
        src="./assets/logo.png"
      />
      <h1>Easy-CodeEditor</h1>
      <div>
        语言：
        <el-select
          v-model="opts.language"
          clearable
          placeholder="请选择"
          size="mini"
          @change="changeLanguage"
        >
          <el-option
            v-for="item in sets.language"
            :key="item"
            :label="item"
            :value="item"
          >
          </el-option>
        </el-select>
        样式风格：
        <el-select
          v-model="opts.theme"
          clearable
          placeholder="请选择"
          size="mini"
          @change="changeTheme"
        >
          <el-option
            v-for="item in sets.theme"
            :key="item"
            :label="item"
            :value="item"
          >
          </el-option>
        </el-select>
        <el-button type="primary" size="mini" @click="getValue"
          >获取内容</el-button
        >
      </div>
    </div>
    <div>
      <!--调用子组件-->
      <monaco
        ref="monaco"
        :opts="opts"
        @change="changeValue"
        :height="600"
      ></monaco>
    </div>
  </div>
</template>
<script>
import monaco from ''./components/monacoeditor''
export default {
  components: { monaco },
  data () {
    return {
      sets: {
        language: {
          ''apex'': ''apex'',
          ''azcli'': ''azcli'',
          ''bat'': ''bat'',
          ''c'': ''c'',
          ''clojure'': ''clojure'',
          ''coffeescript'': ''coffeescript'',
          ''cpp'': ''cpp'',
          ''csharp'': ''csharp'',
          ''csp'': ''csp'',
          ''css'': ''css'',
          ''dockerfile'': ''dockerfile'',
          ''fsharp'': ''fsharp'',
          ''go'': ''go'',
          ''graphql'': ''graphql'',
          ''handlebars'': ''handlebars'',
          ''html'': ''html'',
          ''ini'': ''ini'',
          ''java'': ''java'',
          ''javascript'': ''javascript'',
          ''json'': ''json'',
          ''kotlin'': ''kotlin'',
          ''less'': ''less'',
          ''lua'': ''lua'',
          ''markdown'': ''markdown'',
          ''msdax'': ''msdax'',
          ''mysql'': ''mysql'',
          ''objective-c'': ''objective-c'',
          ''pascal'': ''pascal'',
          ''perl'': ''perl'',
          ''pgsql'': ''pgsql'',
          ''php'': ''php'',
          ''plaintext'': ''plaintext'',
          ''postiats'': ''postiats'',
          ''powerquery'': ''powerquery'',
          ''powershell'': ''powershell'',
          ''pug'': ''pug'',
          ''python'': ''python'',
          ''r'': ''r'',
          ''razor'': ''razor'',
          ''redis'': ''redis'',
          ''redshift'': ''redshift'',
          ''ruby'': ''ruby'',
          ''rust'': ''rust'',
          ''sb'': ''sb'',
          ''scheme'': ''scheme'',
          ''scss'': ''scss'',
          ''shell'': ''shell'',
          ''sol'': ''sol'',
          ''sql'': ''sql'',
          ''st'': ''st'',
          ''swift'': ''swift'',
          ''tcl'': ''tcl'',
          ''typescript'': ''typescript'',
          ''vb'': ''vb'',
          ''xml'': ''xml'',
          ''yaml'': ''yaml''
        },
        theme: {
          ''vs'': ''vs'',
          ''vs-dark'': ''vs-dark'',
          ''hc-black'': ''hc-black''
        }
      },
      opts: {
        value: '''',
        readOnly: false, // 是否可编辑
        language: ''javascript'', // 语言类型
        theme: ''vs-dark'' // 编辑器主题
      }
    }
  },
  methods: {
    changeLanguage (val) {
      this.opts.language = val
    },
    changeTheme (val) {
      this.opts.theme = val
    },
    // 手动获取值
    getValue () {
      this.$message.info(''代码已输出至控制台'');
      console.log(''输出代码:'' + this.$refs.monaco.getVal())
    },
    // 内容改变自动获取值
    changeValue (val) {
      console.log(val)
    }
  }
}
</script>
<style>
#app {
  font-family: Avenir, Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
  margin-top: 60px;
}
</style>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169

2.3.3.3 效果:

2.3.3.4 注意:

1)当我们修改了defaultOpts的配置后我们需要重新初始化monaco编辑器;即重新执行this.init();

2.4 编辑器代码diff的实现

init () {
 // 初始化container的内容，销毁之前生成的编辑器
      this.$refs.container.innerHTML = ''''
      // 生成编辑器配置
      let editorOptions = Object.assign(this.defaultOpts, this.opts)
       editorOptions.readOnly = true;
       editorOptions.language = ''javascript''
      // 初始化编辑器实例
      this.monacoDiffInstance = monaco.editor.createDiffEditor(this.$refs[''container''],editorOptions)
      this.monacoDiffInstance.setModel({
      // oldValue为以前的值
      original: monaco.editor.createModel(this.oldValue, editorOptions.language),
       // oldValue为新的值
      modified: monaco.editor.createModel(this.newValue, editorOptions.language)
      })
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

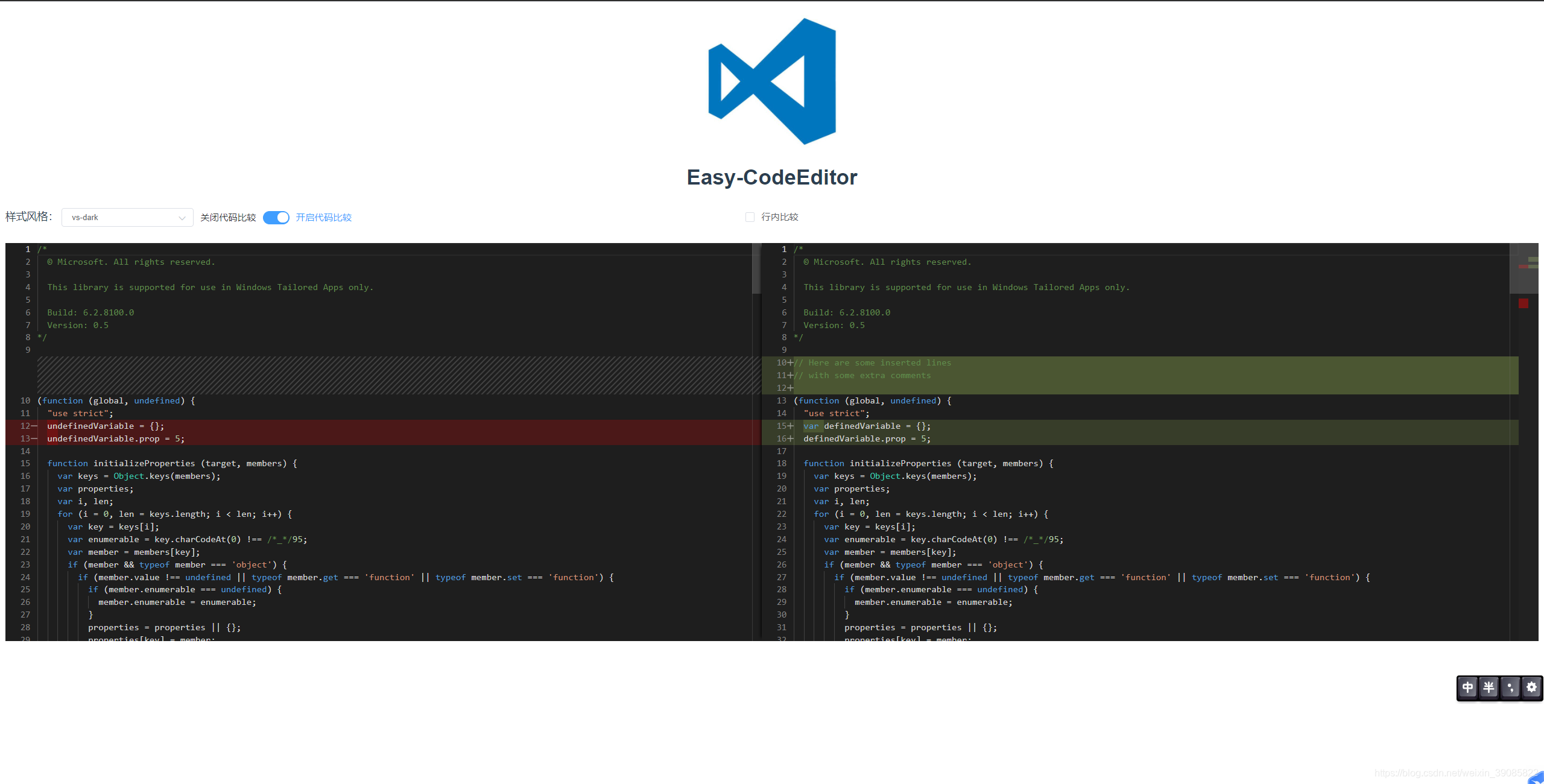

效果::

2.4.1切换为行内比较

//直接升级配置项 renderSideBySide: false 即可
this.monacoDiffInstance.updateOptions({
       renderSideBySide: false
     });
1
2
3
4

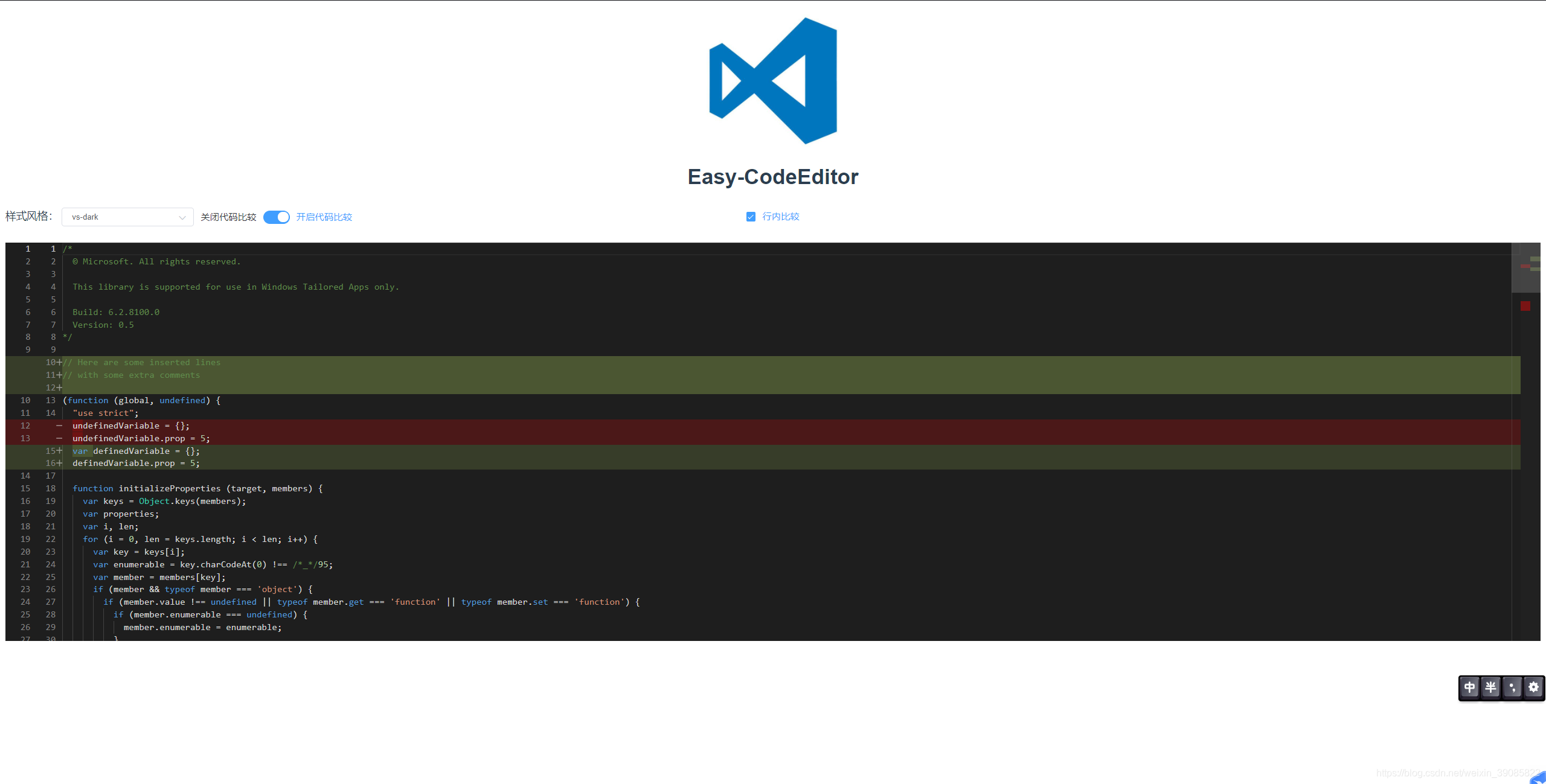

效果:

本文章项目地址
