vue3+vite+ts使用monaco-editor编辑器

前言

近期要完成一个代码编辑器的内容，用的vue3.0+ts+vite架构，学习尚浅，
常在插件上遇坑
特此记录下在monaco-editor的使用

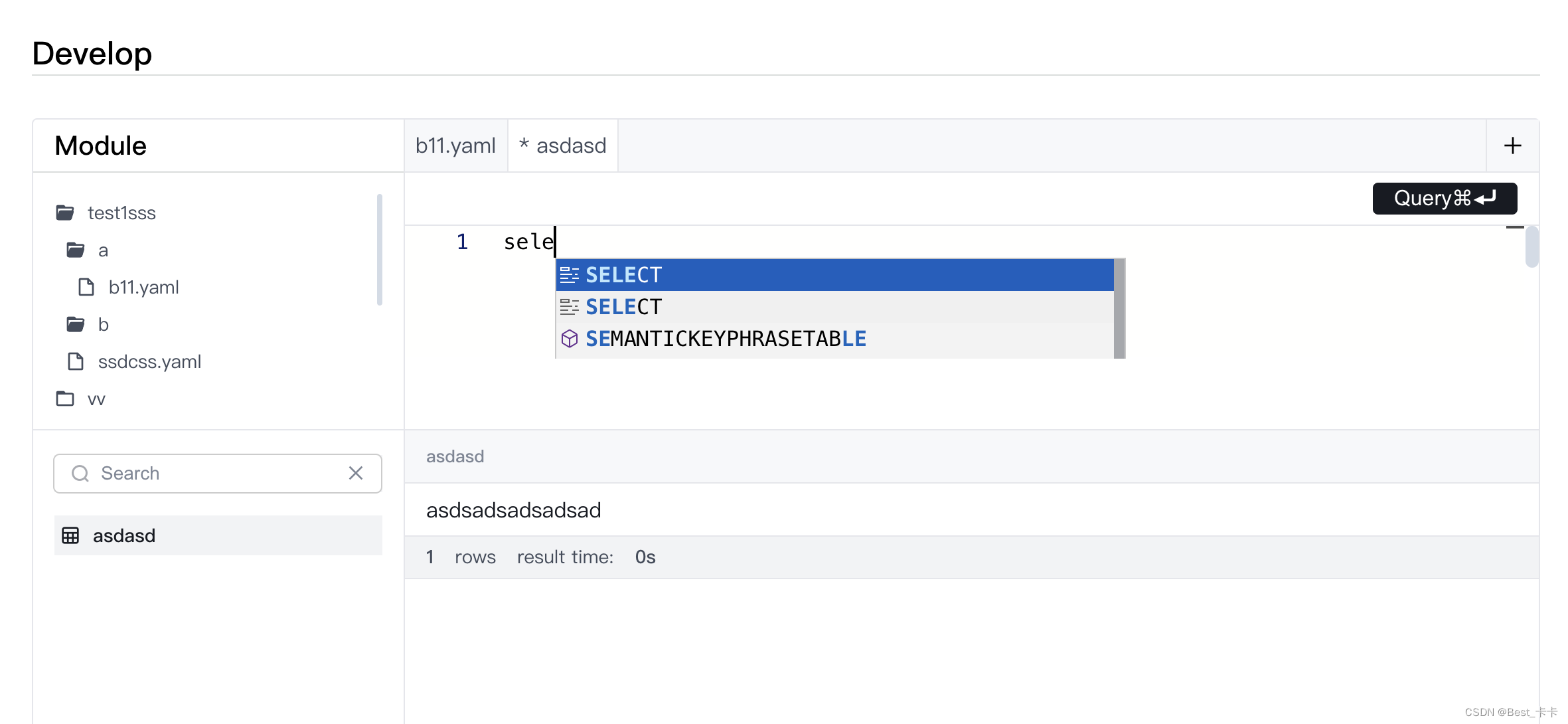

需求：yaml和sql的文件的高亮、补全
1
2
3
4

实现

1. 安装

// ^0.34.1
yarn add monaco-editor
1
2

2. 在vite.config.js中配置（如果不需要ts\js\html就不需要这么做）

// 强制预构建插件包
   optimizeDeps: {
    include: [
      `monaco-editor/esm/vs/language/json/json.worker`,
      `monaco-editor/esm/vs/language/css/css.worker`,
      `monaco-editor/esm/vs/language/html/html.worker`,
      `monaco-editor/esm/vs/language/typescript/ts.worker`,
      `monaco-editor/esm/vs/editor/editor.worker`
    ],
  },
1
2
3
4
5
6
7
8
9
10

3. 组件封装与使用
   monacoEditor.vue组件

   <template>
     <div
       ref="codeEditBox"
       class="codeEditBox"
       :class="hightChange&&''codeEditBox1''"
     />
   </template>
   <script lang="ts">
   	import {
   	  defineComponent, onBeforeUnmount, onMounted, ref, watch,
   	} from ''vue''
   	import JsonWorker from ''monaco-editor/esm/vs/language/json/json.worker?worker''
   	import CssWorker from ''monaco-editor/esm/vs/language/css/css.worker?worker''
   	import HtmlWorker from ''monaco-editor/esm/vs/language/html/html.worker?worker''
   	import TsWorker from ''monaco-editor/esm/vs/language/typescript/ts.worker?worker''
   	import EditorWorker from ''monaco-editor/esm/vs/editor/editor.worker?worker''
   	import * as monaco from ''monaco-editor''
   	import { language as sqlLanguage } from ''monaco-editor/esm/vs/basic-languages/sql/sql.js'';
   	import { language as yamlLanguage } from ''monaco-editor/esm/vs/basic-languages/yaml/yaml.js'';
   	import ''monaco-editor/esm/vs/basic-languages/sql/sql.contribution''
   	import { editorProps } from ''./monacoEditorType''
   	export default defineComponent({
   	  name: ''MonacoEditor'',
   	  props: editorProps,
   	  emits: [''update:modelValue'', ''change'', ''editor-mounted''],
   	  setup(props, { emit }) {
   	    (self as any).MonacoEnvironment = {
   	      getWorker(_: string, label: string) {
   	        if (label === ''json'') {
   	          return new JsonWorker()
   	        }
   	        if ([''css'', ''scss'', ''less''].includes(label)) {
   	          return new CssWorker()
   	        }
   	        if ([''html'', ''handlebars'', ''razor''].includes(label)) {
   	          return new HtmlWorker()
   	        }
   	        if ([''typescript'', ''javascript''].includes(label)) {
   	          return new TsWorker()
   	        }
   	        return new EditorWorker()
   	      },
   	    }
   	    let editor: any
   	    const codeEditBox = ref()

   	    const init = () => {
   	      monaco.languages.typescript.javascriptDefaults.setDiagnosticsOptions({
   	        noSemanticValidation: true,
   	        noSyntaxValidation: false,
   	      })
   	      monaco.languages.typescript.javascriptDefaults.setCompilerOptions({
   	        target: monaco.languages.typescript.ScriptTarget.ES2020,
   	        allowNonTsExtensions: true,
   	      })
   	      monaco.languages.registerCompletionItemProvider(''sql'', {
   	        provideCompletionItems() {
   	          const suggestions:any = [];
   	          // 这个keywords就是sql.js文件中有的
   	          sqlLanguage.keywords.forEach((item:any) => {
   	            suggestions.push({
   	              label: item,
   	              kind: monaco.languages.CompletionItemKind.Keyword,
   	              insertText: item,
   	            });
   	          })
   	          sqlLanguage.operators.forEach((item:any) => {
   	            suggestions.push({
   	              label: item,
   	              kind: monaco.languages.CompletionItemKind.Operator,
   	              insertText: item,
   	            });
   	          })
   	          sqlLanguage.builtinFunctions.forEach((item:any) => {
   	            suggestions.push({
   	              label: item,
   	              kind: monaco.languages.CompletionItemKind.Function,
   	              insertText: item,
   	            });
   	          })
   	          sqlLanguage.builtinVariables.forEach((item:any) => {
   	            suggestions.push({
   	              label: item,
   	              kind: monaco.languages.CompletionItemKind.Variable,
   	              insertText: item,
   	            });
   	          })
   	          return {
   	            // 最后要返回一个数组
   	            suggestions,
   	          };
   	        },
   	      })
   	      monaco.languages.registerCompletionItemProvider(''yaml'', {
   	        provideCompletionItems() {
   	          const suggestions:any = [];
   	          // 这个keywords就是python.js文件中有的
   	          yamlLanguage.keywords.forEach((item:any) => {
   	            suggestions.push({
   	              label: item,
   	              kind: monaco.languages.CompletionItemKind.Keyword,
   	              insertText: item,
   	            });
   	          })
   	          return {
   	            // 最后要返回一个数组
   	            suggestions,
   	          };
   	        },
   	      })

   	      editor = monaco.editor.create(codeEditBox.value, {
   	        value: props.modelValue,
   	        language: props.language,
   	        readOnly: props.readOnly,
   	        theme: props.theme,
   	        ...props.options,
   	      })

         // 监听值的变化
         editor.onDidChangeModelContent(() => {
           const value = editor.getValue() // 给父组件实时返回最新文本
           emit(''update:modelValue'', value)
           emit(''change'', value)
         })

         emit(''editor-mounted'', editor)
       }
       watch(
         () => props.modelValue,
         (newValue) => {
           if (editor) {
             const value = editor.getValue()
             if (newValue !== value) {
               editor.setValue(newValue)
             }
           }
         },
       )

       watch(
         () => props.options,
         (newValue) => {
           editor.updateOptions(newValue)
         },
         { deep: true },
       )
       watch(
         () => props.readOnly,
         () => {
           console.log(''props.readOnly'', props.readOnly)
           editor.updateOptions({ readOnly: props.readOnly })
         },
         { deep: true },
       )

       watch(
         () => props.language,
         (newValue) => {
           monaco.editor.setModelLanguage(editor.getModel()!, newValue)
         },
       )

       onBeforeUnmount(() => {
         editor.dispose()
       })

       onMounted(() => {
         init()
       })

       return { codeEditBox }
     },
   })
   </script>
     <style lang="scss" scoped>
     .codeEditBox {
       width: 100%;
       flex: 1;
       min-height: 100px;
       // height: 200px;
       overflow-y: auto;
     }
     .codeEditBox1{
       height: calc(100% - 323px);
     }
     </style>
   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74
   75
   76
   77
   78
   79
   80
   81
   82
   83
   84
   85
   86
   87
   88
   89
   90
   91
   92
   93
   94
   95
   96
   97
   98
   99
   100
   101
   102
   103
   104
   105
   106
   107
   108
   109
   110
   111
   112
   113
   114
   115
   116
   117
   118
   119
   120
   121
   122
   123
   124
   125
   126
   127
   128
   129
   130
   131
   132
   133
   134
   135
   136
   137
   138
   139
   140
   141
   142
   143
   144
   145
   146
   147
   148
   149
   150
   151
   152
   153
   154
   155
   156
   157
   158
   159
   160
   161
   162
   163
   164
   165
   166
   167
   168
   169
   170
   171
   172
   173
   174
   175
   176
   177
   178
   179
   180
   181
   182
   183
   184
   185
   186
   187

4. monacoEditorType.ts类型定义文件

   	import { PropType } from ''vue''

   	export type Theme = ''vs'' | ''hc-black'' | ''vs-dark''
   	export type FoldingStrategy = ''auto'' | ''indentation''
   	export type RenderLineHighlight = ''all'' | ''line'' | ''none'' | ''gutter''
   	export interface Options {
   	  automaticLayout: boolean // 自适应布局
   	  foldingStrategy: FoldingStrategy // 折叠方式  auto | indentation
   	  renderLineHighlight: RenderLineHighlight // 行亮
   	  selectOnLineNumbers: boolean // 显示行号
   	  placeholder:string
   	  minimap: {
   	    // 关闭小地图
   	    enabled: boolean
   	  }
   	  // readOnly: Boolean // 只读
   	  fontSize: number // 字体大小
   	  scrollBeyondLastLine: boolean // 取消代码后面一大段空白
   	  overviewRulerBorder: boolean // 不要滚动条的边框
   	}

   	export const editorProps = {
   	  modelValue: {
   	    type: String as PropType<string>,
   	    default: null,
   	  },
   	  hightChange: {
   	    type: Boolean,
   	    default: false,
   	  },
   	  width: {
   	    type: [String, Number] as PropType<string | number>,
   	    default: ''100%'',
   	  },
   	  height: {
   	    type: [String, Number] as PropType<string | number>,
   	    default: ''100%'',
   	  },
   	  language: {
   	    type: String as PropType<string>,
   	    default: ''javascript'',
   	  },
   	  readOnly: {
   	    type: Boolean,
   	    default: false,
   	  },
   	  theme: {
   	    type: String as PropType<Theme>,
   	    validator(value: string): boolean {
   	      return [''vs'', ''hc-black'', ''vs-dark'', ''hc-light''].includes(value)
   	    },
   	    default: ''vs'',
   	  },
   	  options: {
   	    type: Object as PropType<Options>,
   	    default() {
   	      return {
   	        automaticLayout: true,
   	        // foldingStrategy: ''indentation'',
   	        foldingStrategy: ''indentation'', // 折叠方式  auto | indentation
   	        // renderLineHighlight: ''all'',
   	        renderLineHighlight: ''all'' || ''line'' || ''none'' || ''gutter'', // 行亮
   	        selectOnLineNumbers: true, // 显示行号
   	        minimap: {
   	          // 关闭小地图
   	          enabled: false,
   	        },
   	        placeholder: ''ss'',
   	        // readOnly: false, // 只读
   	        fontSize: 16, // 字体大小
   	        scrollBeyondLastLine: false, // 取消代码后面一大段空白
   	        overviewRulerBorder: false, // 不要滚动条的边框
   	      }
   	    },
   	  },
   	}
   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   17
   18
   19
   20
   21
   22
   23
   24
   25
   26
   27
   28
   29
   30
   31
   32
   33
   34
   35
   36
   37
   38
   39
   40
   41
   42
   43
   44
   45
   46
   47
   48
   49
   50
   51
   52
   53
   54
   55
   56
   57
   58
   59
   60
   61
   62
   63
   64
   65
   66
   67
   68
   69
   70
   71
   72
   73
   74
   75
   76

5. 在父组件中使用

   	<monacoEditor
      	v-model="value"
        :language="language"
        :hight-change="hightChange"
        :read-only="tablist.length===0"
        width="100%"
        height="100%"
        @editor-mounted="editorMounted"
      />
      import monacoEditor from ''./monacoEditor.vue''
      const value = ref(''-- select * from infrastructure;'')
      const language = ref(''sql'')
      const hightChange = ref<any>(false)
      const editorMounted = (editor: any) => {
        console.log(''editor实例加载完成'', editor)
      }
   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16

       value:编辑器代码显示的值
       language:要加载的语言类型
       hightChange:改变编辑器的高度（可去掉，我这边有个sql查表的实现，需要在编辑区下面加一个sql查询的表格，所以需要这个参数）
       read-only:编辑区是否是只读的，当左侧文件树为空时没有文件，编辑区不可写
       editorMounted:加载完成操作
   1
   2
   3
   4
   5

   //记得在env.d.ts配置包的
   declare module ''monaco-editor'';
   declare module ''monaco-editor/esm/vs/language/typescript/ts.worker?worker''
   declare module ''monaco-editor/esm/vs/basic-languages/sql/sql.js'';
   declare module ''monaco-editor/esm/vs/basic-languages/yaml/yaml.js'';
   declare module ''monaco-editor/esm/vs/language/json/json.worker?worker''
   declare module ''monaco-editor/esm/vs/language/css/css.worker?worker''
   declare module ''monaco-editor/esm/vs/language/html/html.worker?worker''
   declare module ''monaco-editor/esm/vs/editor/editor.worker?worker''
   declare module ''monaco-editor/esm/vs/basic-languages/javascript/javascript.js''
   1
   2
   3
   4
   5
   6
   7
   8
   9
   10

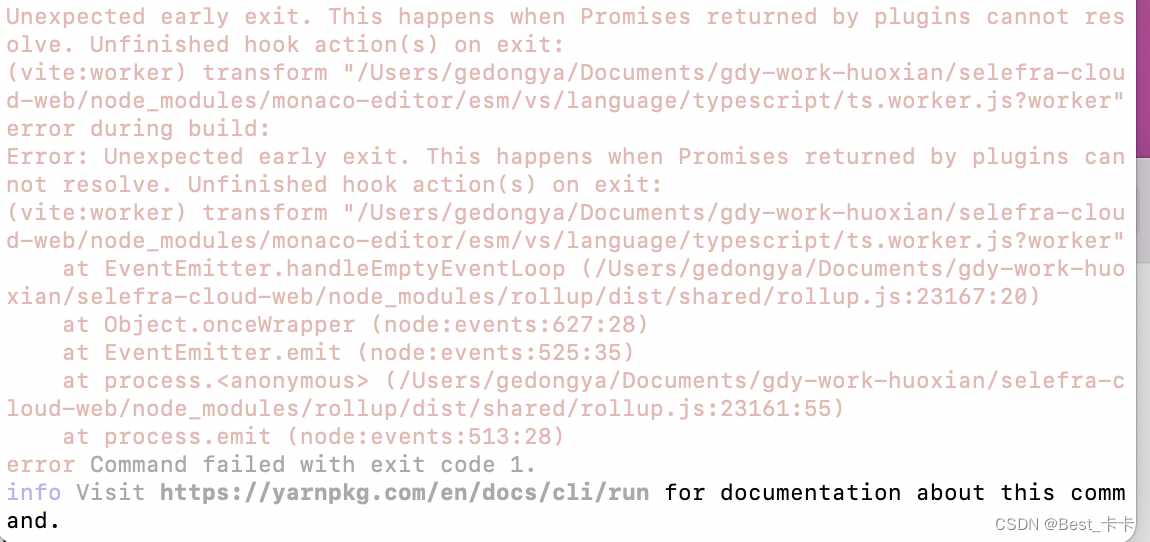

打包报错的处理

yarn build 时会发生下述报错
1

我在这里看到了解决办法https://github.com/microsoft/monaco-editor/blob/main/docs/integrate-esm.md

在monacoEditor.vue组件，重写getWorker方法

<template>
  <div
    ref="codeEditBox"
    class="codeEditBox"
    :class="hightChange&&''codeEditBox1''"
  />
</template>

<script lang="ts">
import {
  defineComponent, onBeforeUnmount, onMounted, ref, watch,
} from ''vue''
// 减去以下包
--  import JsonWorker from ''monaco-editor/esm/vs/language/json/json.worker?worker''
--  import CssWorker from ''monaco-editor/esm/vs/language/css/css.worker?worker''
--  import HtmlWorker from ''monaco-editor/esm/vs/language/html/html.worker?worker''
--  import TsWorker from ''monaco-editor/esm/vs/language/typescript/ts.worker?worker''
--  import EditorWorker from ''monaco-editor/esm/vs/editor/editor.worker?worker''

import * as monaco from ''monaco-editor''
import { language as sqlLanguage } from ''monaco-editor/esm/vs/basic-languages/sql/sql.js'';
import { language as yamlLanguage } from ''monaco-editor/esm/vs/basic-languages/yaml/yaml.js'';
import ''monaco-editor/esm/vs/basic-languages/sql/sql.contribution''
import ''monaco-editor/esm/vs/basic-languages/yaml/yaml.contribution''
import ''monaco-editor/esm/vs/basic-languages/javascript/javascript.contribution''
import { editorProps } from ''./monacoEditorType''

export default defineComponent({
  name: ''MonacoEditor'',
  props: editorProps,
  emits: [''update:modelValue'', ''change'', ''editor-mounted''],
  setup(props, { emit }) {
    (self as any).MonacoEnvironment = {
     ++ getWorker: (_: string, label: string) => {
     ++   const getWorkerModule = (moduleUrl:string, label:string) => new Worker((self as any).MonacoEnvironment.getWorkerUrl(moduleUrl), {
     ++     name: label,
     ++     type: ''module'',
     ++   });

     ++   switch (label) {
     ++     case ''json'':
     ++       return getWorkerModule(''/monaco-editor/esm/vs/language/json/json.worker?worker'', label);
     ++     case ''css'':
     ++     case ''scss'':
     ++     case ''less'':
     ++       return getWorkerModule(''/monaco-editor/esm/vs/language/css/css.worker?worker'', label);
     ++     case ''html'':
     ++     case ''handlebars'':
     ++     case ''razor'':
     ++       return getWorkerModule(''/monaco-editor/esm/vs/language/html/html.worker?worker'', label);
     ++     case ''typescript'':
     ++     case ''javascript'':
     ++       return getWorkerModule(''/monaco-editor/esm/vs/language/typescript/ts.worker?worker'', label);
     ++     default:
     ++       return getWorkerModule(''/monaco-editor/esm/vs/editor/editor.worker?worker'', label);
     ++   }
     ++ },
      // 原来的减去
      -- getWorker(_: string, label: string) {
      --   if (label === ''json'') {
      --     return new JsonWorker()
      --   }
      --   if ([''css'', ''scss'', ''less''].includes(label)) {
      --     return new CssWorker()
      --   }
      --   if ([''html'', ''handlebars'', ''razor''].includes(label)) {
      --     return new HtmlWorker()
      --   }
      --   if ([''typescript'', ''javascript''].includes(label)) {
      --     return new TsWorker()
      --   }
      --   return new EditorWorker()
      -- },
    }
    let editor: any
    const codeEditBox = ref()

    const init = () => {
      monaco.languages.typescript.javascriptDefaults.setDiagnosticsOptions({
        noSemanticValidation: true,
        noSyntaxValidation: false,
      })
      monaco.languages.typescript.javascriptDefaults.setCompilerOptions({
        target: monaco.languages.typescript.ScriptTarget.ES2020,
        allowNonTsExtensions: true,
      })
      monaco.languages.registerCompletionItemProvider(''sql'', {
        provideCompletionItems() {
          const suggestions:any = [];
          // 这个keywords就是sql.js文件中有的
          sqlLanguage.keywords.forEach((item:any) => {
            suggestions.push({
              label: item,
              kind: monaco.languages.CompletionItemKind.Keyword,
              insertText: item,
            });
          })
          sqlLanguage.operators.forEach((item:any) => {
            suggestions.push({
              label: item,
              kind: monaco.languages.CompletionItemKind.Operator,
              insertText: item,
            });
          })
          sqlLanguage.builtinFunctions.forEach((item:any) => {
            suggestions.push({
              label: item,
              kind: monaco.languages.CompletionItemKind.Function,
              insertText: item,
            });
          })
          sqlLanguage.builtinVariables.forEach((item:any) => {
            suggestions.push({
              label: item,
              kind: monaco.languages.CompletionItemKind.Variable,
              insertText: item,
            });
          })
          return {
            // 最后要返回一个数组
            suggestions,
          };
        },
      })
      monaco.languages.registerCompletionItemProvider(''yaml'', {
        provideCompletionItems() {
          const suggestions:any = [];
          // 这个keywords就是python.js文件中有的
          yamlLanguage.keywords.forEach((item:any) => {
            suggestions.push({
              label: item,
              kind: monaco.languages.CompletionItemKind.Keyword,
              insertText: item,
            });
          })
          return {
            // 最后要返回一个数组
            suggestions,
          };
        },
      })

      editor = monaco.editor.create(codeEditBox.value, {
        value: props.modelValue,
        language: props.language,
        readOnly: props.readOnly,
        theme: props.theme,
        ...props.options,
      })

      // 监听值的变化
      editor.onDidChangeModelContent(() => {
        const value = editor.getValue() // 给父组件实时返回最新文本
        emit(''update:modelValue'', value)
        emit(''change'', value)
      })

      emit(''editor-mounted'', editor)
    }
    watch(
      () => props.modelValue,
      (newValue) => {
        if (editor) {
          const value = editor.getValue()
          if (newValue !== value) {
            editor.setValue(newValue)
          }
        }
      },
    )

    watch(
      () => props.options,
      (newValue) => {
        editor.updateOptions(newValue)
      },
      { deep: true },
    )
    watch(
      () => props.readOnly,
      () => {
        console.log(''props.readOnly'', props.readOnly)
        editor.updateOptions({ readOnly: props.readOnly })
      },
      { deep: true },
    )

    watch(
      () => props.language,
      (newValue) => {
        monaco.editor.setModelLanguage(editor.getModel()!, newValue)
      },
    )

    onBeforeUnmount(() => {
      editor.dispose()
    })

    onMounted(() => {
      init()
    })

    return { codeEditBox }
  },
})
</script>

  <style lang="scss" scoped>
  .codeEditBox {
    width: 100%;
    flex: 1;
    min-height: 100px;
    // height: 200px;
    overflow-y: auto;
  }
  .codeEditBox1{
    height: calc(100% - 323px);
  }
  </style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
