1.一 官网安装
官网： https://minikube.sigs.k8s.io/
搜了下网上如何通过Mac 安装看网上文章很多，但是受限于国内网络环境，很多都不行，各种下载失败。如果你有VPN，那么官方的步骤就容易走通：
$ brew install kubectl
$ brew install minikube
$ brew install docker-machine-driver-hyperkit
$ sudo chown root:wheel /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
$ sudo chmod u+s /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
$ minikube start --vm-driver hyperkit
- 1
- 2
- 3
- 4
- 5
- 6
注意点：
xhyve 已经不支持了。提示：darwin 不支持驱动程序“xhyve”
旧文档的brew cask install minikube 不推荐了，
报错：Cask ''minikube'' is unavailable: No Cask with this name exists. 去掉cask直接安装。
- 1
- 2
- 3
brew 本质是也是一整拉取Git的方式，所以还是想用不适用proxy的情况下如何安装k8s.
我们需要安装三样东西：Kubernetes 的命令行客户端 kubctl、一个可以在本地跑起来的 Kubernetes 环境 Minikube、以及给 Minikube 使用的虚拟化引擎hyperkit.
2.安装步骤：
安装minikube
curl -Lo minikube https://github.com/kubernetes/minikube/releases/download/v1.6.2/minikube-darwin-amd64 && chmod +x minikube && sudo mv minikube /usr/local/bin/
或者
(base) lcc@lcc minikube$ brew install minikube
- 1
- 2
- 3
- 4
我这里是
(base) lcc@lcc minikube$ brew install minikube
Updating Homebrew...
==> Downloading https://homebrew.bintray.com/bottles/kubernetes-cli-1.18.2.catalina.bottle.tar.gz
==> Downloading from https://akamai.bintray.com/5f/5f7df7b8226c75aff03a754057cef41150260e3a968d6fc4282738b01b1d8911?__gda__=exp=1589897373~hmac=2c10ee9a4bcc8a1a158bd6168bf094e54653b323056bb0f
######################################################################## 100.0%
==> Downloading https://homebrew.bintray.com/bottles/minikube-1.10.1.catalina.bottle.tar.gz
==> Downloading from https://akamai.bintray.com/c0/c0ba6e4c2d00def3af2aa2db3535aef37bb3a7bfe182f35277b3a510b0edffeb?__gda__=exp=1589897433~hmac=29c17a5f940317b89108afbd8dfcde0b0fc3a8b8231e532
######################################################################## 100.0%
==> Installing dependencies for minikube: kubernetes-cli
==> Installing minikube dependency: kubernetes-cli
==> Pouring kubernetes-cli-1.18.2.catalina.bottle.tar.gz
Error: The `brew link` step did not complete successfully
The formula built, but is not symlinked into /usr/local
Could not symlink bin/kubectl
Target /usr/local/bin/kubectl
already exists. You may want to remove it:
rm ''/usr/local/bin/kubectl''
To force the link and overwrite all conflicting files:
brew link --overwrite kubernetes-cli
To list all files that would be deleted:
brew link --overwrite --dry-run kubernetes-cli
Possible conflicting files are:
/usr/local/bin/kubectl -> /Applications/Docker 2.app/Contents/Resources/bin/kubectl
==> Caveats
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
==> Summary
🍺 /usr/local/Cellar/kubernetes-cli/1.18.2: 232 files, 49.1MB
==> Installing minikube
==> Pouring minikube-1.10.1.catalina.bottle.tar.gz
==> Caveats
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
==> Summary
🍺 /usr/local/Cellar/minikube/1.10.1: 8 files, 61.0MB
==> `brew cleanup` has not been run in 30 days, running now...
Removing: /Users/lcc/Library/Caches/Homebrew/ccache--3.7.7.catalina.bottle.tar.gz... (91.3KB)
Removing: /Users/lcc/Library/Caches/Homebrew/gettext--0.20.1.catalina.bottle.tar.gz... (8.3MB)
Removing: /Users/lcc/Library/Caches/Homebrew/mercurial--5.3.1.catalina.bottle.tar.gz... (2.5MB)
Removing: /Users/lcc/Library/Caches/Homebrew/openssl@1.1--1.1.1d.catalina.bottle.tar.gz... (5.2MB)
Removing: /Users/lcc/Library/Caches/Homebrew/xz--5.2.4.catalina.bottle.tar.gz... (373.9KB)
Removing: /Users/lcc/Library/Logs/Homebrew/wget... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/libidn2... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/ccache... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/libpng... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/gdbm... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/freetype... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/python... (3 files, 148.7KB)
Removing: /Users/lcc/Library/Logs/Homebrew/libunistring... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/readline... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/sqlite... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/xz... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/gettext... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/mercurial... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/autoconf... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/openssl@1.1... (64B)
Removing: /Users/lcc/Library/Logs/Homebrew/telnet... (64B)
Pruned 0 symbolic links and 5 directories from /usr/local
==> Caveats
==> kubernetes-cli
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
==> minikube
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
(base) lcc@lcc minikube$
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
这是阿里云版本：
curl -Lo minikube http://kubernetes.oss-cn-hangzhou.aliyuncs.com/minikube/releases/v0.30.0/minikube-darwin-amd64 && chmod +x minikube && sudo mv minikube /usr/local/bin/
- 1
输出版本号：
(base) lcc@lcc minikube$ minikube version
minikube version: v1.10.1
commit: 63ab801ac27e5742ae442ce36dff7877dcccb278
(base) lcc@lcc minikube$
- 1
- 2
- 3
- 4
2.安装 hyperkit
(base) lcc@lcc minikube$ curl -LO https://storage.googleapis.com/minikube/releases/latest/docker-machine-driver-hyperkit && chmod +x docker-machine-driver-hyperkit && sudo mv docker-machine-driver-hyperkit /usr/local/bin/ && sudo chown root:wheel /usr/local/bin/docker-machine-driver-hyperkit && sudo chmod u+s /usr/local/bin/docker-machine-driver-hyperkit
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 10.8M 100 10.8M 0 0 154k 0 0:01:12 0:01:12 --:--:-- 241k
(base) lcc@lcc ~$ ll /usr/local/bin/ | grep docker-machine-driver-hyperkit
-rwsr-xr-x 1 root wheel 11428724 5 19 22:25 docker-machine-driver-hyperkit*
(base) lcc@lcc ~$
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
3. 安装kubectl
安装kubectl
brew install kubectl
- 1
安装 docker-machine-driver-hyperkit
(base) lcc@lcc bin$ brew install docker-machine-driver-hyperkit
Updating Homebrew...
==> Auto-updated Homebrew!
Updated 2 taps (homebrew/core and homebrew/cask).
==> Updated Formulae
closure-compiler docfx maxwell
==> Updated Casks
master-password pdfelement zalo
==> Downloading https://homebrew.bintray.com/bottles/docker-machine-0.16.2.catalina.bottle.tar.gz
Already downloaded: /Users/lcc/Library/Caches/Homebrew/downloads/2743ebd703a6c0755f1bfa98f224c9cc357c9f9d8bcaa8981c798c7a45cfd422--docker-machine-0.16.2.catalina.bottle.tar.gz
==> Downloading https://homebrew.bintray.com/bottles/docker-machine-driver-hyperkit-1.0.0.catalina.bottle.tar.gz
==> Downloading from https://akamai.bintray.com/97/970f9a0f226f1dde7d60e0878a05cef43b503e79f669e2f69fa6e2fd48cfb7f5?__gda__=exp=1589899767~hmac=d124b9b7631e2e6fc82d7aa32deed4b4c80fd321e2ff6c9
######################################################################## 100.0%
==> Installing dependencies for docker-machine-driver-hyperkit: docker-machine
==> Installing docker-machine-driver-hyperkit dependency: docker-machine
==> Pouring docker-machine-0.16.2.catalina.bottle.tar.gz
==> Caveats
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
To have launchd start docker-machine now and restart at login:
brew services start docker-machine
Or, if you don''t want/need a background service you can just run:
docker-machine start
==> Summary
🍺 /usr/local/Cellar/docker-machine/0.16.2: 11 files, 36MB
==> Installing docker-machine-driver-hyperkit
==> Pouring docker-machine-driver-hyperkit-1.0.0.catalina.bottle.tar.gz
Error: The `brew link` step did not complete successfully
The formula built, but is not symlinked into /usr/local
Could not symlink bin/docker-machine-driver-hyperkit
Target /usr/local/bin/docker-machine-driver-hyperkit
already exists. You may want to remove it:
rm ''/usr/local/bin/docker-machine-driver-hyperkit''
To force the link and overwrite all conflicting files:
brew link --overwrite docker-machine-driver-hyperkit
To list all files that would be deleted:
brew link --overwrite --dry-run docker-machine-driver-hyperkit
Possible conflicting files are:
/usr/local/bin/docker-machine-driver-hyperkit
==> Caveats
This driver requires superuser privileges to access the hypervisor. To
enable, execute:
sudo chown root:wheel /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
sudo chmod u+s /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
==> Summary
🍺 /usr/local/Cellar/docker-machine-driver-hyperkit/1.0.0: 5 files, 13.7MB
==> Caveats
==> docker-machine
Bash completion has been installed to:
/usr/local/etc/bash_completion.d
zsh completions have been installed to:
/usr/local/share/zsh/site-functions
To have launchd start docker-machine now and restart at login:
brew services start docker-machine
Or, if you don''t want/need a background service you can just run:
docker-machine start
==> docker-machine-driver-hyperkit
This driver requires superuser privileges to access the hypervisor. To
enable, execute:
sudo chown root:wheel /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
sudo chmod u+s /usr/local/opt/docker-machine-driver-hyperkit/bin/docker-machine-driver-hyperkit
(base) lcc@lcc bin$
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
输出kubectl --help 信息就OK
4. 启动
这个也很关键，网上默认的启动报错：
Darwin 10.14.6 上的 minikube v1.6.2
Selecting ''hyperkit'' driver from user configuration (alternates: [])
正在下载驱动 docker-machine-driver-hyperkit:
> docker-machine-driver-hyperkit.sha256: 65 B / 65 B [---] 100.00% ? p/s 0s
> docker-machine-driver-hyperkit: 628.54 KiB / 10.81 MiB 5.68% 1.71 KiB p/
Unable to update hyperkit driver: download failed: https://github.com/kubernetes/minikube/releases/download/v1.6.2/docker-machine-driver-hyperkit?checksum=file:https://github.com/kubernetes/minikube/releases/download/v1.6.2/docker-machine-driver-hyperkit.sha256: read tcp 192.168.16.30:58130->52.216.142.4:443: read: connection reset by peer
正在创建 hyperkit 虚拟机（CPUs=2，Memory=2000MB, Disk=20000MB）...
panic: runtime error: invalid memory address or nil pointer dereference
[signal SIGSEGV: segmentation violation code=0x1 addr=0x28 pc=0x4ecd70f]
goroutine 150 [running]:
github.com/google/go-containerregistry/pkg/v1/tarball.Write(0x0, 0xc0006b2780, 0xa, 0xc0006b278b, 0xe, 0xc0006b279a, 0x7, 0x0, 0x0, 0xc000871c68, ...)
/private/tmp/minikube-20191220-77113-wmp8w9/.brew_home/go/pkg/mod/github.com/google/go-containerregistry@v0.0.0-20180731221751-697ee0b3d46e/pkg/v1/tarball/write.go:57 +0x12f
k8s.io/minikube/pkg/minikube/machine.CacheImage(0xc0006b2780, 0x21, 0xc0006f59f0, 0x45, 0x0, 0x0)
/private/tmp/minikube-20191220-77113-wmp8w9/pkg/minikube/machine/cache_images.go:395 +0x5df
k8s.io/minikube/pkg/minikube/machine.CacheImages.func1(0xc000028f68, 0x0)
/private/tmp/minikube-20191220-77113-wmp8w9/pkg/minikube/machine/cache_images.go:85 +0x124
golang.org/x/sync/errgroup.(*Group).Go.func1(0xc000728fc0, 0xc000729020)
/private/tmp/minikube-20191220-77113-wmp8w9/.brew_home/go/pkg/mod/golang.org/x/sync@v0.0.0-20190423024810-112230192c58/errgroup/errgroup.go:57 +0x64
created by golang.org/x/sync/errgroup.(*Group).Go
/private/tmp/minikube-20191220-77113-wmp8w9/.brew_home/go/pkg/mod/golang.org/x/sync@v0.0.0-20190423024810-112230192c58/errgroup/errgroup.go:54 +0x66
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
这里需要在阿里云有账户，开通镜像加速。
minikube start --image-mirror-country=cn --iso-url=https://kubernetes.oss-cn-hangzhou.aliyuncs.com/minikube/iso/minikube-v1.6.2.iso --registry-mirror=https://XXXX.mirror.aliyuncs.com --image-repository=registry.cn-hangzhou.aliyuncs.com/google_containers
- 1
参数对应的含义：
--image-mirror-country cn 将缺省利用 registry.cn-hangzhou.aliyuncs.com/google_containers 作为安装Kubernetes的容器镜像仓库，
--iso-url=*** 利用阿里云的镜像地址下载相应的 .iso 文件
--registry-mirror= 就是你在阿里云的镜像加速地址，必须的，不然很慢。
--image-repository= 不选择会提示VM is unable to access k8s.gcr.io, you may need to configure a proxy or set --image-repository
- 1
- 2
- 3
- 4
这一点没有阿里镜像，我没做下去
😄 Darwin 10.14.6 上的 minikube v1.6.2
✨ Selecting ''hyperkit'' driver from existing profile (alternates: [])
✅ 正在使用映像存储库 registry.cn-hangzhou.aliyuncs.com/google_containers
💿 正在下载 VM boot image...
💣 缓存ISO 时失败: https://kubernetes.oss-cn-hangzhou.aliyuncs.com/minikube/iso/minikube-v1.6.2.iso: bad response code: 404
😿 minikube is exiting due to an error. If the above message is not useful, open an issue:
👉 https://github.com/kubernetes/minikube/issues/new/choose
benmuMacBook-Pro:Homebrew benmu$ minikube start --image-mirror-country=cn --iso-url=https://kubernetes.oss-cn-hangzhou.aliyuncs.com/minikube/iso/minikube-v1.6.0.iso --registry-mirror=https://7icj7z92.mirror.aliyuncs.com --image-repository=registry.cn-hangzhou.aliyuncs.com/google_containers
😄 Darwin 10.14.6 上的 minikube v1.6.2
✨ Selecting ''hyperkit'' driver from existing profile (alternates: [])
✅ 正在使用映像存储库 registry.cn-hangzhou.aliyuncs.com/google_containers
💡 Tip: Use ''minikube start -p <name>'' to create a new cluster, or ''minikube delete'' to delete this one.
🏃 Using the running hyperkit "minikube" VM ...
⌛ Waiting for the host to be provisioned ...
🐳 正在 Docker ''19.03.5'' 中准备 Kubernetes v1.17.0…
E0117 16:48:18.733289 68071 cache_images.go:86] CacheImage registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0 -> /Users/benmu/.minikube/cache/images/registry.cn-hangzhou.aliyuncs.com/google_containers/etcd_3.4.3-0 failed: write: UNAUTHORIZED: "authentication required"
E0117 16:48:18.736915 68071 start.go:839] Error caching images: Caching images for kubeadm: caching images: caching image /Users/benmu/.minikube/cache/images/registry.cn-hangzhou.aliyuncs.com/google_containers/etcd_3.4.3-0: write: UNAUTHORIZED: "authentication required"
❌ Unable to load cached images: loading cached images: stat /Users/benmu/.minikube/cache/images/registry.cn-hangzhou.aliyuncs.com/google_containers/etcd_3.4.3-0: no such file or directory
🚀 正在启动 Kubernetes ...
🏄 完成！kubectl 已经配置至 "minikube"
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
minikube status
host: Running
kubelet: Running
apiserver: Running
kubeconfig: Configured
- 1
- 2
- 3
- 4

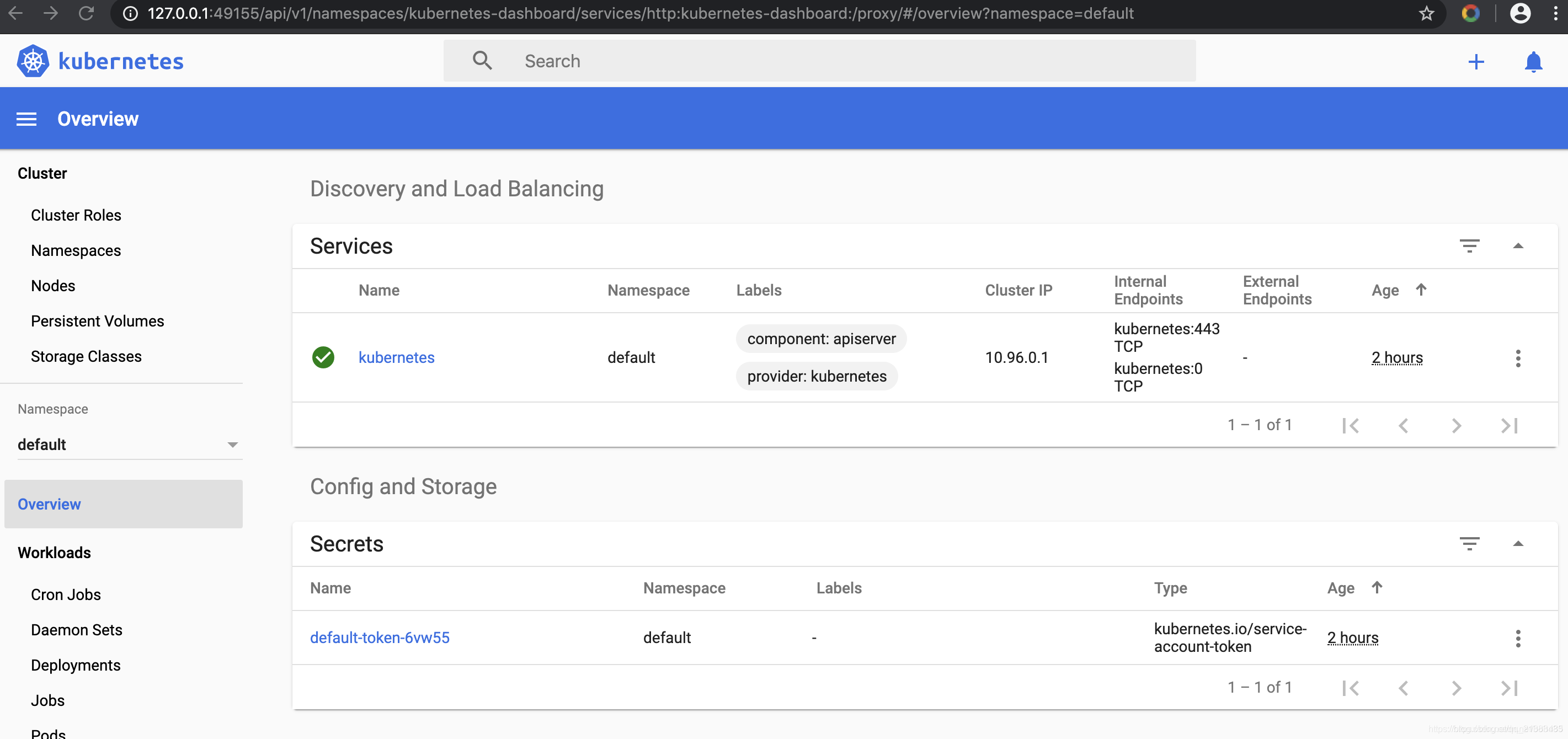

打开控制台：
minikube dashboard
🔌 正在开启 dashboard ...
🤔 Verifying dashboard health ...
🚀 Launching proxy ...
🤔 Verifying proxy health ...
🎉 Opening http://127.0.0.1:49155/api/v1/namespaces/kubernetes-dashboard/services/http:kubernetes-dashboard:/proxy/ in your default browser...
- 1
- 2
- 3
- 4
- 5
- 6
- 7
新手记录下自己搭建过程，主要是
minikube star
- 1
这里一开始没用对参数，各种报错，然后删除 ~/.minikube 再加上参数重试。
最后，引用下阿里云的图：Minikube利用本地虚拟机环境部署Kubernetes，其基本架构如下图所示。
好了，开始你的k8s之旅吧。
