在Vue3项目中使用 Echarts 绘制股票图表的分享（五）：分时图的基础上绘制出五日图

效果展示

分析：五日图其实也就是展示了相当于五天的分时图的数据量；对比前面的分时图绘制效果，我们可以发现：它多出了对这五天内的现价做个最高价和最低价的标注，并且对最新时间段的现价数据做个闪烁点+涟漪特效。

绘制五日图

关键代码

标注数据的最高价和最低价：

options[''series''] = [
    {
      name: ''当前价'',
      type: ''line'',
      data: prices.value,
      smooth: true,
      symbol: ''none'',
      gridIndex: 3,
      lineStyle: {
        opacity: 1,
        color: ''#FF3232'',
        width: 0.5
      },
      markPoint: {
        label: {
          color: ''#ffffff'',
          fontSize: 10,
          formatter: function ({ value }: any) {
            return fomatFloat(value, 2);
          }
        },
        data: [
          {
            type: ''max'',
            symbolOffset: [0, -12] // 设置markpoint图标的位置
          },
          {
            type: ''min'',
            symbolOffset: [0, 12] // 设置markpoint图标的位置
          }
        ],
        symbolSize: 0
      },
      markLine: {
        silent: true,
        symbol: ''none'',
        label: {
          show: true,
          distance: [-40, 0]
        },
        lineStyle: {
          color: ''#2B2F39'',
          opacity: 1,
          type: ''dashed''
        },
        data: [
          {
            yAxis: close.value,
            lineStyle: {
              color: ''#2b2f39''
            },
            label: {
              position: ''end'',
              color: ''#999999'',
              fontWeight: ''bold'',
              fontSize: 10,
              formatter: function () {
                return ''0.00%'';
              }
            }
          },
          {
            yAxis: close.value,
            lineStyle: {
              color: ''#2b2f39''
            },
            label: {
              fontSize: 10,
              fontWeight: ''bold'',
              color: ''#999999'',
              position: ''start'',
              formatter: function (params: any) {
                return Number(params.value).toFixed(2);
              }
            }
          }
        ]
      },
      emphasis: {
        focus: ''none'',
        scale: false,
        disabled: ''none'',
        lineStyle: {
          width: 1
        }
      }
    },
    ......
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89

markPoint 属性可以对图表的数据进行标注，借由该属性中的 data 字段里面的 type 我们可以在图表上标注出最高价和最低价。

当前时间节点数据的闪烁点：

  options[''series''] = [
  ......
      {
      gridIndex: 0,
      // 设置涟漪特效动画
      type: ''effectScatter'',
      // 有三种: cartesian2d(二维的直角坐标系) polar(极坐标系) geo(地理坐标系) ,此需求使用cartesian2d
      coordinateSystem: ''cartesian2d'',
      // 单个闪烁点 ↓
      data: pricesEffectScatter, //2d坐标系--[x轴, y轴, 标记大小]
      // 何时显示特效:''render''-绘制完成后显示特效 ''emphasis''-高亮（hover）的时候显示特效
      showEffectOn: ''render'',
      // 涟漪特效配置
      rippleEffect: {
        // 波纹的绘制方式,可选''stroke''和''fill''
        brushType: ''stroke''
      },
      // hoverAnimation: true,
      itemStyle: {
        color: ''#F9293E'',
        shadowBlur: 5,
        shadowColor: ''#F9293E''
      },
      zlevel: 9
    }
  ......
  ]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

现价中的闪烁点是使用带有涟漪特效动画的散点（气泡）图来实现的，它可以利用动画特效可以将某些想要突出的数据进行视觉突出。

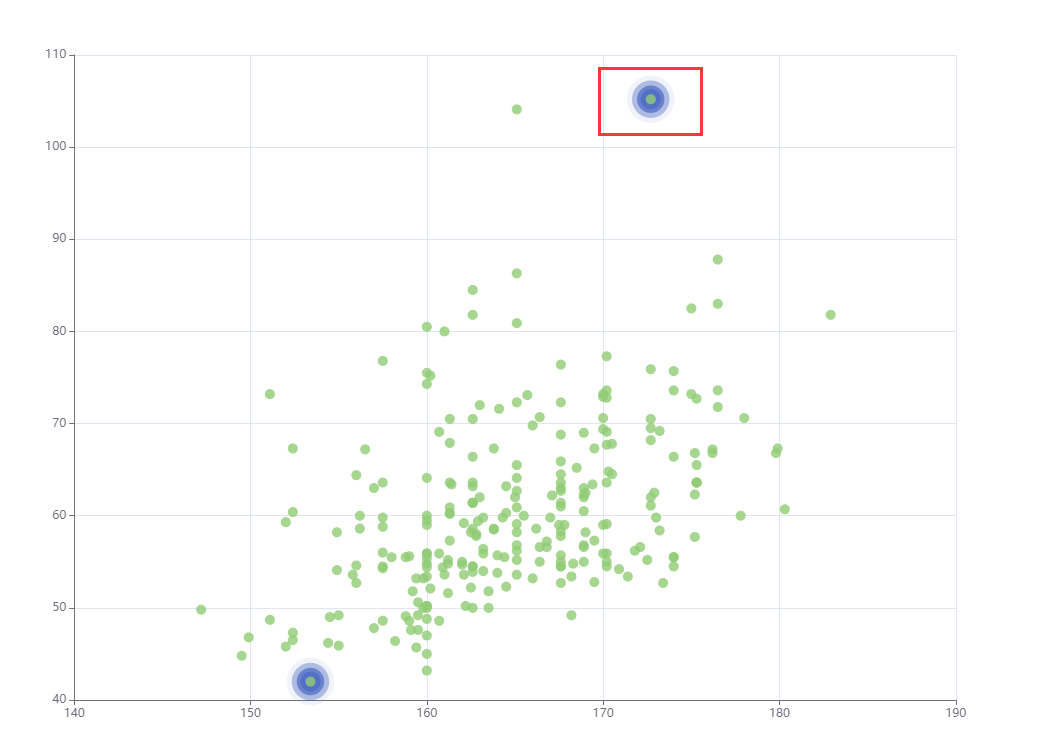

官方涟漪特效散点图示例：

完整代码
