vue3中如何使用pdfjs来展示pdf文档

javascript
 代码解读
复制代码
<template>
  <div class="pdf-container">
    <canvas id="pdf-canvas"></canvas>
  </div>
</template>
<script lang="ts">
import * as PDFJS from "pdfjs-dist";
import * as PdfWorker from "pdfjs-dist/build/pdf.worker.js";
import { nextTick, onMounted, ref } from "vue";
import PdfBook from "@/assets/JavaScript.pdf";

window.pdfjsWorker = PdfWorker;
let pdfDoc: any = null;
const pdfPages = ref(0);
const pdfScale = ref(1.5);
const pdfContainerRef = ref<HTMLElement | null>(null);

const loadFile = (url: any) => {

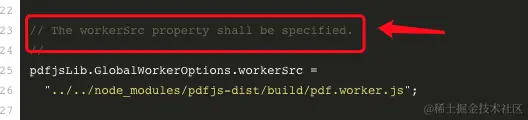

  // 设定pdfjs的 workerSrc 参数
  PDFJS.GlobalWorkerOptions.workerSrc = PdfWorker;
  const loadingTask = PDFJS.getDocument(url);
  loadingTask.promise
    .then(async (pdf: any) => {
      pdf.loadingParams.disableAutoFetch = true;
      pdf.loadingParams.disableStream = true;
      pdfDoc = pdf; // 保存加载的pdf文件流
      pdfPages.value = pdfDoc.numPages; // 获取pdf文件的总页数
      await nextTick(() => {
        renderPage(1); // 将pdf文件内容渲染到canvas
      });
    })
    .catch((error: any) => {
      console.warn(`[upthen] pdfReader loadFile error: ${error}`);
    });
};

const renderPage = (num: any) => {
  pdfDoc.getPage(num).then((page: any) => {
    page.cleanup();
    const canvas: any = document.getElementById(`pdf-canvas`);
    if (canvas) {
      const ctx = canvas.getContext("2d");
      const dpr = window.devicePixelRatio || 1;
      const bsr =
        ctx.webkitBackingStorePixelRatio ||
        ctx.mozBackingStorePixelRatio ||
        ctx.msBackingStorePixelRatio ||
        ctx.oBackingStorePixelRatio ||
        ctx.backingStorePixelRatio ||
        1;
      const ratio = dpr / bsr;
      const viewport = page.getViewport({ scale: pdfScale.value });
      canvas.width = viewport.width * ratio;
      canvas.height = viewport.height * ratio;
      canvas.style.width = viewport.width + "px";
      canvas.style.height = viewport.height + "px";
      ctx.setTransform(ratio, 0, 0, ratio, 0, 0);
      const renderContext = {
        canvasContext: ctx,
        viewport: viewport,
      };
      page.render(renderContext);
    }
  });
};

onMounted(() => {
  loadFile(PdfBook);
});
</script>

html
 代码解读
复制代码
<template>
  <div class="pdf-container" ref="pdfContainerRef">
    <canvas
      v-for="pageIndex in pdfPages"
      :id="`pdf-canvas-${pageIndex}`"
      :key="pageIndex"
    />
  </div>
</template>

<script setup lang="ts">
import * as PDFJS from "pdfjs-dist";
import * as PdfWorker from "pdfjs-dist/build/pdf.worker.js";
import { nextTick, onMounted, ref } from "vue";
import PdfBook from "@/assets/JavaScript.pdf";

window.pdfjsWorker = PdfWorker;
let pdfDoc: any = null;
const pdfPages = ref(0);
const pdfScale = ref(1.5);
const pdfContainerRef = ref<HTMLElement | null>(null);

const loadFile = (url: any) => {
  // 设定pdfjs的 workerSrc 参数
  PDFJS.GlobalWorkerOptions.workerSrc = PdfWorker;
  const loadingTask = PDFJS.getDocument(url);
  loadingTask.promise
    .then(async (pdf: any) => {
      pdf.loadingParams.disableAutoFetch = true;
      pdf.loadingParams.disableStream = true;
      pdfDoc = pdf; // 保存加载的pdf文件流
      pdfPages.value = pdfDoc.numPages; // 获取pdf文件的总页数
      await nextTick(() => {
        renderPage(1); // 将pdf文件内容渲染到canvas
      });
    })
    .catch((error: any) => {
      console.warn(`[upthen] pdfReader loadFile error: ${error}`);
    });
};

const renderPage = (num: any) => {
  pdfDoc.getPage(num).then((page: any) => {
    page.cleanup();
    if (pdfContainerRef.value) {
      pdfScale.value = pdfContainerRef.value.clientWidth / page.view[2];
    }
    const canvas: any = document.getElementById(`pdf-canvas-${num}`);
    if (canvas) {
      const ctx = canvas.getContext("2d");
      const dpr = window.devicePixelRatio || 1;
      const bsr =
        ctx.webkitBackingStorePixelRatio ||
        ctx.mozBackingStorePixelRatio ||
        ctx.msBackingStorePixelRatio ||
        ctx.oBackingStorePixelRatio ||
        ctx.backingStorePixelRatio ||
        1;
      const ratio = dpr / bsr;
      const viewport = page.getViewport({ scale: pdfScale.value });
      canvas.width = viewport.width * ratio;
      canvas.height = viewport.height * ratio;
      canvas.style.width = viewport.width + "px";
      canvas.style.height = viewport.height + "px";
      ctx.setTransform(ratio, 0, 0, ratio, 0, 0);
      const renderContext = {
        canvasContext: ctx,
        viewport: viewport,
      };
      page.render(renderContext);
      if (num < pdfPages.value) {
        renderPage(num + 1);
      }
    }
  });
};

onMounted(() => {
  loadFile(PdfBook);
});
</script>

<style scoped>
.pdf-container {
  height: 100%;
  overflow-y: scroll;
  overflow-x: hidden;
  canvas {
    display: flex;
    flex-direction: column;
    align-items: center;
    justify-content: center;
  }
}
</style>

html
 代码解读
复制代码
<template>
  <div class="on-demand-pdf-container" ref="pdfContainerRef">
    <canvas
      v-for="pageIndex in renderedPages"
      :id="`pdf-canvas-${pageIndex}`"
      :key="pageIndex"
    />
  </div>
</template>

<script setup lang="ts">
// 为了优化加载性能，这2个文件可以在页面挂载时动态导入
// import * as PDFJS from "pdfjs-dist";
// import * as PdfWorker from "pdfjs-dist/build/pdf.worker.js";
import { nextTick, onMounted, ref, computed, onUnmounted } from "vue";
import PdfBook from "@/assets/JavaScript.pdf";

let pdfDoc: any = null;
const pdfPages = ref(0);
const pdfScale = ref(1.5);
const pdfContainerRef = ref<HTMLElement | null>(null);
const loadedNum = ref(0);
const preloadNum = computed(() => {
  return pdfPages.value - loadedNum.value > 3
    ? 3
    : pdfPages.value - loadedNum.value;
});
const loadFished = computed(() => {
  const loadFinished = loadedNum.value + preloadNum.value >= pdfPages.value;
  if (loadFinished) {
    removeEventListeners();
  }
  return loadFinished;
});

const renderedPages = computed(() => {
  return loadFished.value ? pdfPages.value : loadedNum.value + preloadNum.value;
});

let loadingTask;
const renderPage = (num: any) => {
  pdfDoc.getPage(num).then((page: any) => {
    page.cleanup();
    if (pdfContainerRef.value) {
      pdfScale.value = pdfContainerRef.value.clientWidth / page.view[2];
    }
    const canvas: any = document.getElementById(`pdf-canvas-${num}`);
    if (canvas) {
      const ctx = canvas.getContext("2d");
      const dpr = window.devicePixelRatio || 1;
      const bsr =
        ctx.webkitBackingStorePixelRatio ||
        ctx.mozBackingStorePixelRatio ||
        ctx.msBackingStorePixelRatio ||
        ctx.oBackingStorePixelRatio ||
        ctx.backingStorePixelRatio ||
        1;
      const ratio = dpr / bsr;
      const viewport = page.getViewport({ scale: pdfScale.value });
      canvas.width = viewport.width * ratio;
      canvas.height = viewport.height * ratio;
      canvas.style.width = viewport.width + "px";
      canvas.style.height = viewport.height + "px";
      ctx.setTransform(ratio, 0, 0, ratio, 0, 0);
      const renderContext = {
        canvasContext: ctx,
        viewport: viewport,
      };
      page.render(renderContext);
      if (num < loadedNum.value + preloadNum.value && !loadFished.value) {
        renderPage(num + 1);
      } else {
        loadedNum.value = loadedNum.value + preloadNum.value;
      }
    }
  });
};

const initPdfLoader = async (loadingTask: any) => {
  return new Promise((resolve, reject) => {
    loadingTask.promise
      .then((pdf: any) => {
        pdf.loadingParams.disableAutoFetch = true;
        pdf.loadingParams.disableStream = true;
        pdfDoc = pdf; // 保存加载的pdf文件流
        pdfPages.value = pdfDoc.numPages; // 获取pdf文件的总页数
        resolve(true);
      })
      .catch((error: any) => {
        reject(error);
        console.warn(`[upthen] pdfReader loadFile error: ${error}`);
      });
  });
};

const distanceToBottom = ref(0);
const calculateDistanceToBottom = () => {
  if (pdfContainerRef.value) {
    const containerHeight = pdfContainerRef.value.offsetHeight;
    const containerScrollHeight = pdfContainerRef.value.scrollHeight;
    distanceToBottom.value =
      containerScrollHeight - containerHeight - pdfContainerRef.value.scrollTop;
    console.log(distanceToBottom.value);
  }
};

const lazyRenderPdf = () => {
  calculateDistanceToBottom();
  if (distanceToBottom.value < 1000) {
    renderPage(loadedNum.value);
  }
};

const removeEventListeners = () => {
  pdfContainerRef.value?.removeEventListener("scroll", () => {
    lazyRenderPdf();
  });
};

onMounted(async () => {
  // 设定pdfjs的 workerSrc 参数
  let PDFJS = await import("pdfjs-dist");
  window.pdfjsWorker = await import("pdfjs-dist/build/pdf.worker.js");
  PDFJS.GlobalWorkerOptions.workerSrc = window.pdfjsWorker;
  loadingTask = PDFJS.getDocument(PdfBook);
  if (await initPdfLoader(loadingTask)) {
    renderPage(1);
  }

  pdfContainerRef.value.addEventListener("scroll", () => {
    lazyRenderPdf();
  });
});

onUnmounted(() => {
  removeEventListeners();
});
</script>

<style lang="scss" scoped>
.on-demand-pdf-container {
  height: 100%;
  overflow-y: scroll;
  overflow-x: hidden;
  canvas {
    display: flex;
    flex-direction: column;
    align-items: center;
    justify-content: center;
  }
}
</style>

ts
 代码解读
复制代码
// build/pdf.js
function getDocument(src) {
  var task = new PDFDocumentLoadingTask(); // 一个文档加载的实例，是个 promise，意味着可以异步去加载文件
  var source;
  // 这里可以看到，getDocument 支持的参数有 4 种类型，之前一直以为只有 1 种😂
  if (typeof src === "string" || src instanceof URL) {
    source = {
      url: src,
    };
  } else if ((0, _util.isArrayBuffer)(src)) {
    source = {
      data: src,
    };
  } else if (src instanceof PDFDataRangeTransport) {
    source = {
      range: src,
    };
  } else {
    if (_typeof(src) !== "object") {
      throw new Error(
        "Invalid parameter in getDocument, " +
          "need either string, URL, Uint8Array, or parameter object."
      );
    }

    if (!src.url && !src.data && !src.range) {
      throw new Error(
        "Invalid parameter object: need either .data, .range or .url"
      );
    }

    source = src;

}

var params = Object.create(null);
var rangeTransport = null,
worker = null;

// 一个 for 循环设置一些参数
for (var key in source) {
var value = source[key];

    switch (key) {
      case "url":
        if (typeof window !== "undefined") {
          try {
            params[key] = new URL(value, window.location).href;
            continue;
          } catch (ex) {
            (0, _util.warn)(''Cannot create valid URL: "''.concat(ex, ''".''));
          }
        } else if (typeof value === "string" || value instanceof URL) {
          params[key] = value.toString();
          continue;
        }

        throw new Error(
          "Invalid PDF url data: " +
            "either string or URL-object is expected in the url property."
        );

      case "range":
        rangeTransport = value;
        continue;

      case "worker":
        worker = value;
        continue;

      case "data":
        if (
          _is_node.isNodeJS &&
          typeof Buffer !== "undefined" &&
          value instanceof Buffer
        ) {
          params[key] = new Uint8Array(value);
        } else if (value instanceof Uint8Array) {
          break;
        } else if (typeof value === "string") {
          params[key] = (0, _util.stringToBytes)(value);
        } else if (
          _typeof(value) === "object" &&
          value !== null &&
          !isNaN(value.length)
        ) {
          params[key] = new Uint8Array(value);
        } else if ((0, _util.isArrayBuffer)(value)) {
          params[key] = new Uint8Array(value);
        } else {
          throw new Error(
            "Invalid PDF binary data: either typed array, " +
              "string, or array-like object is expected in the data property."
          );
        }

        continue;
    }

    params[key] = value;

}

// 可以看到这里有超多自定义参数，理论上都是可以通过 getDocument api 传参实现的
params.rangeChunkSize = params.rangeChunkSize || DEFAULT_RANGE_CHUNK_SIZE;
params.CMapReaderFactory =
params.CMapReaderFactory || DefaultCMapReaderFactory;
params.ignoreErrors = params.stopAtErrors !== true;
params.fontExtraProperties = params.fontExtraProperties === true;
params.pdfBug = params.pdfBug === true;
params.enableXfa = params.enableXfa === true;

if (
typeof params.docBaseUrl !== "string" ||
(0, \_display_utils.isDataScheme)(params.docBaseUrl)
) {
params.docBaseUrl = null;
}

if (!Number.isInteger(params.maxImageSize)) {
params.maxImageSize = -1;
}

if (typeof params.isEvalSupported !== "boolean") {
params.isEvalSupported = true;
}

if (typeof params.disableFontFace !== "boolean") {
params.disableFontFace =
\_api_compatibility.apiCompatibilityParams.disableFontFace || false;
}

if (typeof params.ownerDocument === "undefined") {
params.ownerDocument = globalThis.document;
}

if (typeof params.disableRange !== "boolean") {
params.disableRange = false;
}

// 禁止流式加载
if (typeof params.disableStream !== "boolean") {
params.disableStream = false;
}
// 禁止自动加载
if (typeof params.disableAutoFetch !== "boolean") {
params.disableAutoFetch = false;
}

(0, \_util.setVerbosityLevel)(params.verbosity);

if (!worker) {
var workerParams = {
verbosity: params.verbosity,
port: \_worker_options.GlobalWorkerOptions.workerPort,
};
worker = workerParams.port
? PDFWorker.fromPort(workerParams)
: new PDFWorker(workerParams);
task.\_worker = worker;
}

var docId = task.docId;
worker.promise
.then(function () {
if (task.destroyed) {
throw new Error("Loading aborted");
}

      var workerIdPromise = _fetchDocument(
        worker,
        params,
        rangeTransport,
        docId
      );

      var networkStreamPromise = new Promise(function (resolve) {
        var networkStream;

        if (rangeTransport) {
          networkStream = new _transport_stream.PDFDataTransportStream(
            {
              length: params.length,
              initialData: params.initialData,
              progressiveDone: params.progressiveDone,
              contentDispositionFilename: params.contentDispositionFilename,
              disableRange: params.disableRange,
              disableStream: params.disableStream,
            },
            rangeTransport
          );
        } else if (!params.data) {
          // 如何设置响应头，这里找到答案了
          // 果然提供了 httpHeaders 参数供用户定制
          networkStream = createPDFNetworkStream({
            url: params.url,
            length: params.length,
            httpHeaders: params.httpHeaders,
            withCredentials: params.withCredentials,
            rangeChunkSize: params.rangeChunkSize,
            disableRange: params.disableRange,
            disableStream: params.disableStream,
          });
        }

        resolve(networkStream);
      });
      return Promise.all([workerIdPromise, networkStreamPromise]).then(
        function (_ref) {
          var _ref2 = _slicedToArray(_ref, 2),
            workerId = _ref2[0],
            networkStream = _ref2[1];

          if (task.destroyed) {
            throw new Error("Loading aborted");
          }

          var messageHandler = new _message_handler.MessageHandler(
            docId,
            workerId,
            worker.port
          );
          messageHandler.postMessageTransfers = worker.postMessageTransfers;
          var transport = new WorkerTransport(
            messageHandler,
            task,
            networkStream,
            params
          );
          task._transport = transport;
          messageHandler.send("Ready", null);
        }
      );
    })
    ["catch"](task._capability.reject);

return task;
}
